Product Description
This kind of chemical etching machine is used for etching magnesium photoengraving Plate. All our electric parts are international famous brand, such as Siemens, Schneider, Omron etc. So our Machine is with high quality and long working life, even can be used for more than 15 years.For the cooling system, we design a new cooler system which is used for etching Magnesium plate, the cooling results is faster and better and normal air-conditioner.
The corrosion rate of magnesium plate is fast. For the preparation of new drugs, 80 lines (0.8mm) are generally corroded in 3 minutes. The heat generated by the chemical reaction is concentrated in a short time, so the magnesium plate etching machine requires a strong ability to control the cooling temperature of the reaction. Magnesium plate etching machine requires cooling of 5 degrees Celsius in one minute, and zinc plate machine generally can cool 2 degrees Celsius in one minute.
The chemical etching equipment bath capacity is: 20L, 40L, 60L, 80L, 100L, 120L, 140L, 160L, 180L, 200L etc.
Technical Data Sheet
Model | Plate Making Size(mm) | Volume(L) | R/S (r/m) | Temp Control (℃) | Time Control(min) | Power(KW) | Voltage(V) | Machine Size(m) |
J20 | 250*350 | 20 | 0-960 | 6-45 | 0-99.99 | 3.2 | 220/380 | 1.2X0.8X1.1 |
J40 | 350*500 | 40 | 0-960 | 6-45 | 0-99.99 | 4 | 220/380 | 1.4X1X1.1 |
J60 | 500*600 | 60 | 0-960 | 6-45 | 0-99.99 | 5.5 | 220/380 | 1.6X1.1X1.1 |
J80 | 500*740 | 80 | 0-960 | 6-45 | 0-99.99 | 6.5 | 220/380 | 1.8X1.2X1.1 |
J100 | 600*800 | 100 | 0-960 | 6-45 | 0-99.99 | 7 | 220/380 | 2.1X1.3X1.2 |
J120 | 600*900 | 120 | 0-960 | 6-45 | 0-99.99 | 8.5 | 380 | 2.2X1.4X1.2 |
J140 | 800*900 | 140 | 0-960 | 6-45 | 0-99.99 | 9.3 | 380 | 2.3X1.5X1.2 |

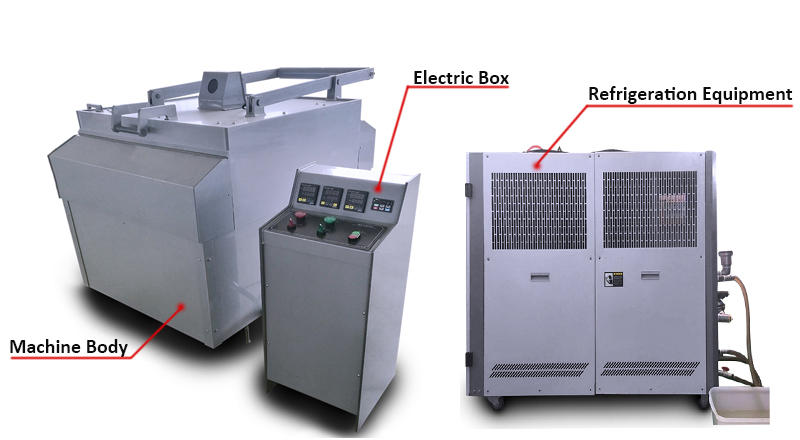

Machine Details
The Magnesium Plate Chemical Etching Machine is of good quality. If you need more details and infor please feel free to contact us.
Advantage:
1. Our this magnesium plates etching machine can etch serveral steel plates one time, same the etching depth, good result, environmental protection.
2. Overcome the manual etching uneven.
3. Adopt to making big pad printing steel plate, for exaple:200X550X10mm steel plates.

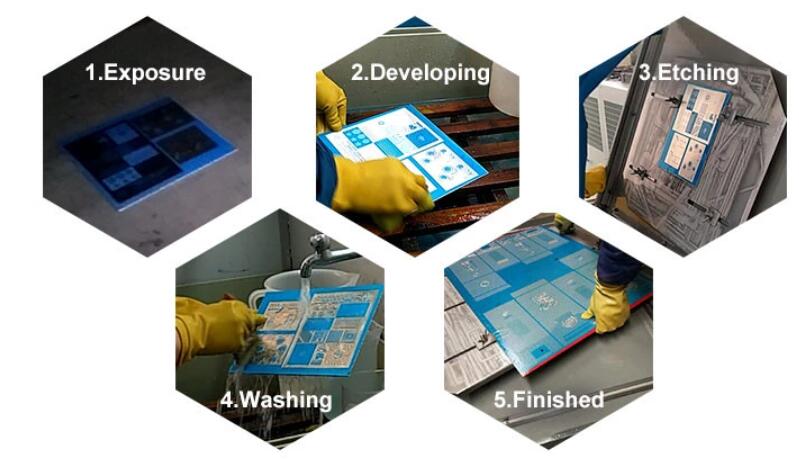

Etching Process
Exposure
Developing
Etching
Washing
Finished

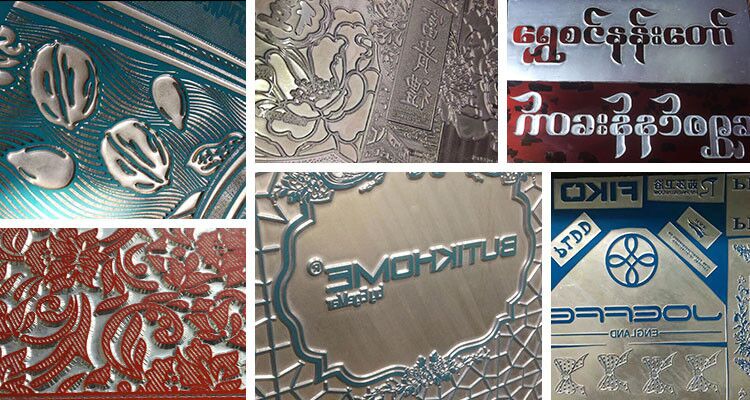

After Etching
You can tell me your needs, we can provide a one-stop solution to achieve your satisfaction.
Packaging & Shipping
In order to better ensure the safety of our goods, we will provide professional, environmentally friendly, convenient and efficient packaging services and transportation.
Company Profile
Shandong Topower Pte.,Ltd was created in 2017 as a famous manufacture in China who supplied high grade printing products service and solutions, which are focus on service to printing industry.Our main products are zinc plate, magnesium plate, copper plate, etching machine, cutting machine, etc. We have served more than 20 countries, including Peru, Indonesia, Chile, Pakistan, Turkey, etc.Your inquiry is very welcome.
Our Vision
To provide an excellent product with prompt and accurate service at the highest quality, and at a fair price.
Our Mission
Provide good quality and good design, use advance manufacturing system,
strictly control the material and make process to satisfy various needs of our customer
FAQ
Q1:How long is machine guarantee time?
A1:One year guarantee, all inconsumable parts pump/filter/rectifier/kinds motor/chiller and etc, we will guarantee one year, within one year, if any parts broken we will replace it free, natural disaster and human damage is excluded.
Q2:Do you provide installation service?
A2:Definitely, we have professional abroad installation team, standard team is one translator, two mechanical engineer, one electric engineer, your local labor team is required to speed up our whole installation and comissioning procedure.
Q3:What's the term of payment?
A3:30%T/T as down payment; 70%T/T before delivery time.
Q4:Can you provide technical support?
A4:We have professional technical staff to provide technical support.
Q5:Why choose us?
A5:We can not only provide you high quality products with competitive price, but also we can supply good technique service which can help you solve problems.
