Product Description
The processing process of Magnesium Alloy Bar, corrosion and mechanical properties have many characteristics: fast heat dissipation, light weight, good rigidity, certain corrosion resistance and dimensional stability, impact resistance, wear resistance, good attenuation performance and easy recycling; in addition, there are high Thermal and electrical conductivity, non-magnetic, good shielding and non-toxic features.
Characteristics
1. High strength-to-weight ratio
2. High stiffness-to-weight
3. Castability
4. Machinability
5. Excellent damping
6. Highest electromotive series among metals in salt water.
7. Biocompatibility and bioabsorbability
Technical Chemical
| Alloy | Grade | Chemical Composition/% | |||||
| Mg | Al | Zn | Mn | Ce | Zr | ||
| Mg | Mg99.95 | ≥99.95 | ≤0.01 | — | ≤0.004 | — | — |
| Mg99.90 | ≥99.5 | — | — | — | — | — | |
| Mg99.00 | ≥99.0 | — | — | — | — | — | |
| MgAlZn | Az31B | Bal. | 2.5-3.5 | 0.60-1.4 | 0.20-1.0 | — | — |
| Az31S | Bal. | 2.4-3.6 | 0.50-1.5 | 0.15-0.40 | — | — | |
| Az31T | Bal. | 2.4-3.6 | 0.50-1.5 | 0.04-0.05 | — | — | |
| Az40M | Bal. | 3.0-4.0 | 0.20-0.80 | 0.15-0.50 | — | — | |
| Az41M | Bal. | 3.7-4.7 | 0.80-1.4 | 0.30-0.60 | — | — | |
| AZ61A | Bal. | 5.8-7.2 | 0.40-1.5 | 0.12-0.50 | — | — | |
| AZ80A | Bal. | 7.8-9.2 | 0.20-0.80 | 0.15-0.50 | — | — | |
| AZ80M | Bal. | 7.8-9.2 | 0.20-0.80 | 0.12-0.40 | — | — | |
| AZ80S | Bal. | 7.8-9.2 | 0.20-0.80 | 0.17-0.40 | — | — | |
| AZ91D | Bal. | 8.5-9.5 | 0.45-0.90 | 0.17-0.40 | — | — | |
| MgMn | M1C | Bal. | ≤0.01 | — | 0.50-1.3 | — | — |
| M2M | Bal. | ≤0.20 | ≤0.30 | 1.3-2.5 | — | — | |
| M2S | Bal. | — | — | 1.2-2.0 | — | — | |
| MgZnZr | Zk61M | Bal. | ≤0.05 | 5.0-6.0 | ≤0.10 | — | 0.30-0.90 |
| Zk61S | Bal. | — | 4.8-6.2 | — | — | 0.45-0.80 | |
| MgMnRE | Me20M | Bal. | ≤0.020 | ≤0.30 | 1.3-2.2 | — | — |

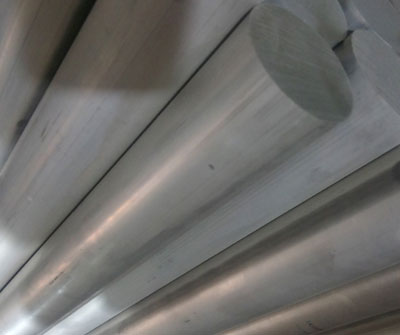

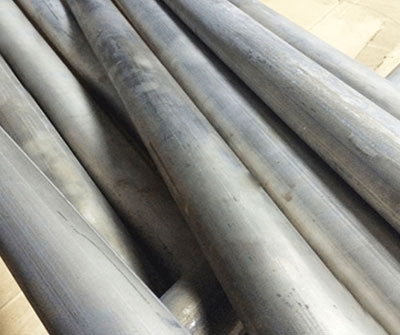

Picture Display
Application
1. Magnesium alloy water heater magnesium rod: Usually the best liner material is used in the water heater, and the corrosion of the liner cannot be avoided. In order to protect the liner and heating pipe of the water heater, many manufacturers have installed magnesium rods for the water heater. That protects the inner tank and prolongs the service life of the electric water heater.
2. Magnesium rods for magnesium alloy batteries, such as the negative pole of an air battery, form a current and voltage with the positive pole to make emergency lighting and backup power.
3. Magnesium rods are specially used for outdoor life-saving fires. The U.S. military designates magnesium rods for ignition, taking advantage of the activity and easy preservation of magnesium rods.
4. Magnesium alloy rods are used for machined parts, turned parts, such as motor housings, etc.
5. Sacrificial anode rods for hull protection.
6. Others.
Packaging & Shipping
In order to better ensure the safety of our goods, we will provide professional, environmentally friendly, convenient and efficient packaging services and transportation.
Company Profile
Shandong Topower Pte.,Ltd was created in 2017 as a famous manufacture in China who supplied high grade printing products service and solutions, which are focus on service to printing industry.Our main products are zinc plate, magnesium plate, copper plate, etching machine, cutting machine, etc. We have served more than 20 countries, including Peru, Indonesia, Chile, Pakistan, Turkey, etc.Your inquiry is very welcome.
FAQ
Q1: Can you send samples?
A1: Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q2: What product information do I need to provide?
A2: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q3: About product prices?
A3:Prices vary from period to period due to cyclical changes in the price of raw materials.
