Product Description
This Hot Stamping Magnesium plate Chemical Etching Machine is based on the technology from Japan and we improve it to makesure the product can have better quality and easily meet customers requirements. The new sealed bearing technology can achieve complete sealing and prevent water leakage.
Model | Plate Making Size(mm) | Volume(L) | R/S (r/m) | Temp Control (℃) | Time Control(min) | Power(KW) | Voltage(V) | Machine Size(m) |
J20 | 250*350 | 20 | 0-960 | 6-45 | 0-99.99 | 3.2 | 220/380 | 1.2X0.8X1.1 |
J40 | 350*500 | 40 | 0-960 | 6-45 | 0-99.99 | 4 | 220/380 | 1.4X1X1.1 |
J60 | 500*600 | 60 | 0-960 | 6-45 | 0-99.99 | 5.5 | 220/380 | 1.6X1.1X1.1 |
J80 | 500*740 | 80 | 0-960 | 6-45 | 0-99.99 | 6.5 | 220/380 | 1.8X1.2X1.1 |
J100 | 600*800 | 100 | 0-960 | 6-45 | 0-99.99 | 7 | 220/380 | 2.1X1.3X1.2 |
J120 | 600*900 | 120 | 0-960 | 6-45 | 0-99.99 | 8.5 | 380 | 2.2X1.4X1.2 |
J140 | 800*900 | 140 | 0-960 | 6-45 | 0-99.99 | 9.3 | 380 | 2.3X1.5X1.2 |

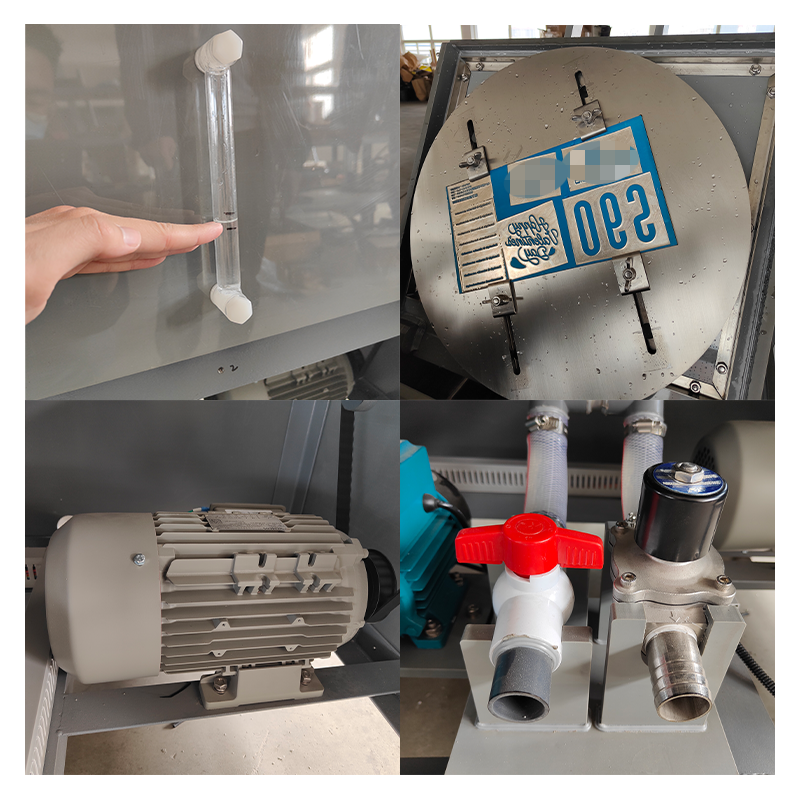

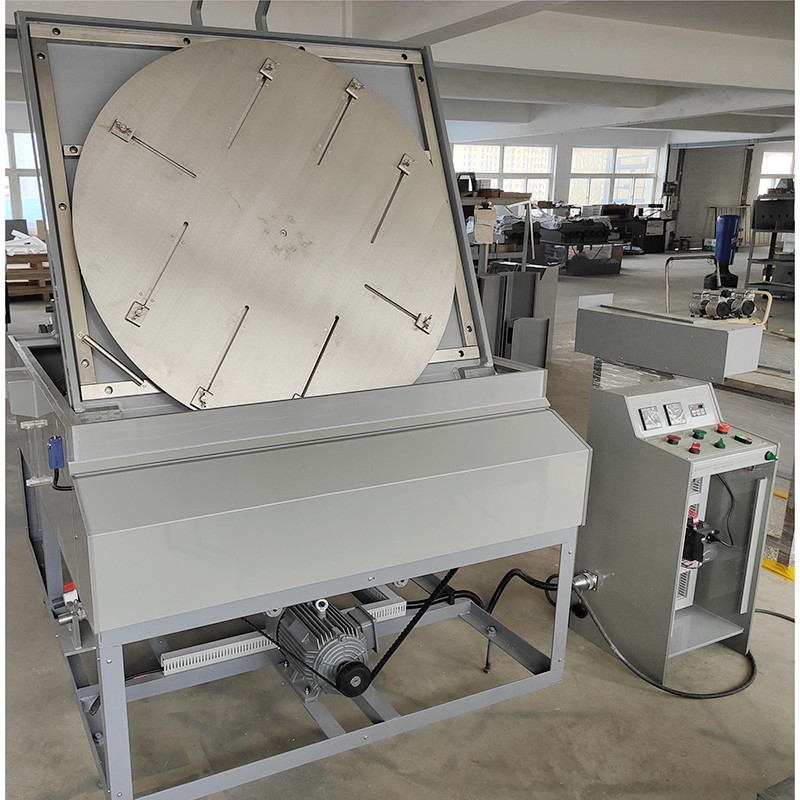

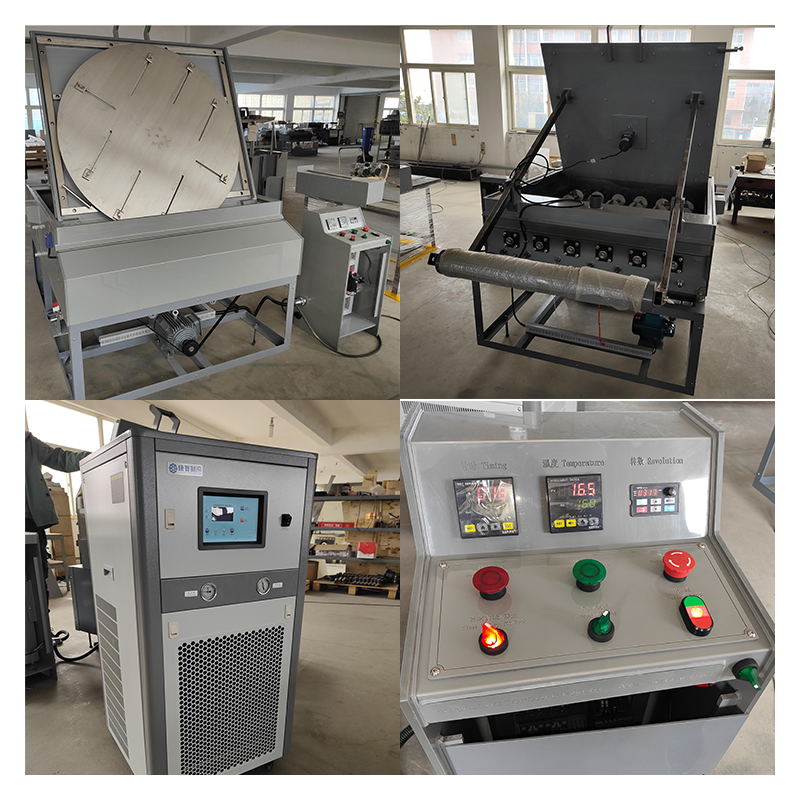

Machine Details
Working Principle
The corroded metal plates are fastened to the machine's turntable. After the equipment is started, the blades of the rotating shaft lift the corrosive liquid. The metal plate of the turntable is also subjected to vertical impact by the corrosive liquid during the rotating motion. Unexposed parts of the metal plate corrode and melt, forming a patterned metal mold.
Etching Process
We will provide after-sales service if you have promble about product or questions during the operation, which can ensure that you can use the product smoothly after receiving it.
After Etching
Packaging & Shipping
We will arrange best suitable packaging solutions according to different products and situations to ensure that the products reach your hands safely.
Company Profile
Shandong Topower Pte.,Ltd was created in 2017 as a famous manufacture in China who supplied high grade printing products service and solutions, which are focus on service to printing industry.Our main products are zinc plate, magnesium plate, copper plate, etching machine, cutting machine, etc. We have served more than 20 countries, including Peru, Indonesia, Chile, Pakistan, Turkey, etc.Your inquiry is very welcome.
FAQ
Q1: What's the quality fo this machine?
A1: Our company have many years production experience in China and supplied high grade printing products.
Q3: Can you provide technical support?
A3: We have professional technical staff to provide technical support.
Q4: What is your lead time?
A4: It usually needs about 20- 30 days after receiving the PO.
Q5: Why choose us?
A5: We can not only provide you high quality products with competitive price, but also we can supply good techniqgue servicewhich can help you solve problems
