Product Description
The technology of chemical etching machine for zinc plate was from Japan before in 1985, and still in improvement constantly to pursue the perfection. New sealing bearings technology achieve complete sealing to prevent water leakage. Topower's chemical etching machine for zinc plate has good quality can meet your satisfaction.
Model | Plate Making Size(mm) | Volume(L) | R/S (r/m) | Temp Control (℃) | Time Control(min) | Power(KW) | Voltage(V) | Machine Size(m) |
J20 | 250*350 | 20 | 0-960 | 6-45 | 0-99.99 | 3.2 | 220/380 | 1.2X0.8X1.1 |
J40 | 350*500 | 40 | 0-960 | 6-45 | 0-99.99 | 4 | 220/380 | 1.4X1X1.1 |
J60 | 500*600 | 60 | 0-960 | 6-45 | 0-99.99 | 5.5 | 220/380 | 1.6X1.1X1.1 |
J80 | 500*740 | 80 | 0-960 | 6-45 | 0-99.99 | 6.5 | 220/380 | 1.8X1.2X1.1 |
J100 | 600*800 | 100 | 0-960 | 6-45 | 0-99.99 | 7 | 220/380 | 2.1X1.3X1.2 |
J120 | 600*900 | 120 | 0-960 | 6-45 | 0-99.99 | 8.5 | 380 | 2.2X1.4X1.2 |
J140 | 800*900 | 140 | 0-960 | 6-45 | 0-99.99 | 9.3 | 380 | 2.3X1.5X1.2 |

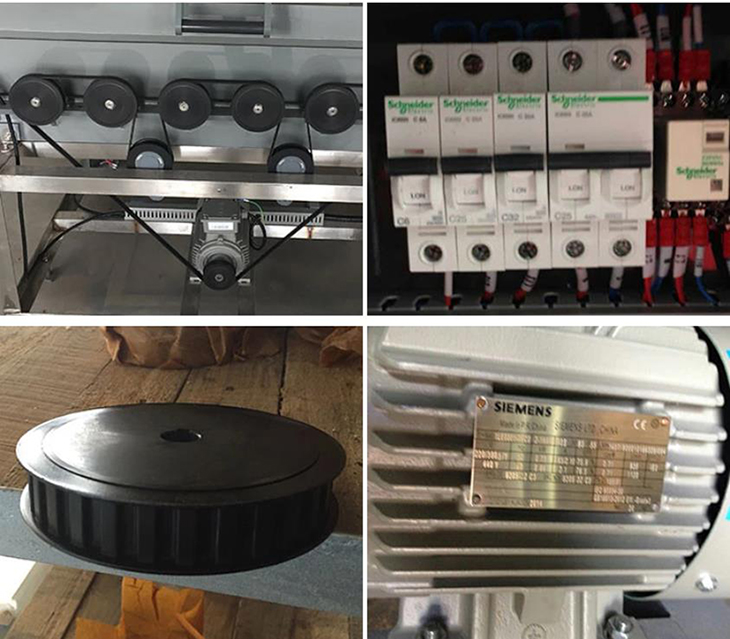

Machine Details

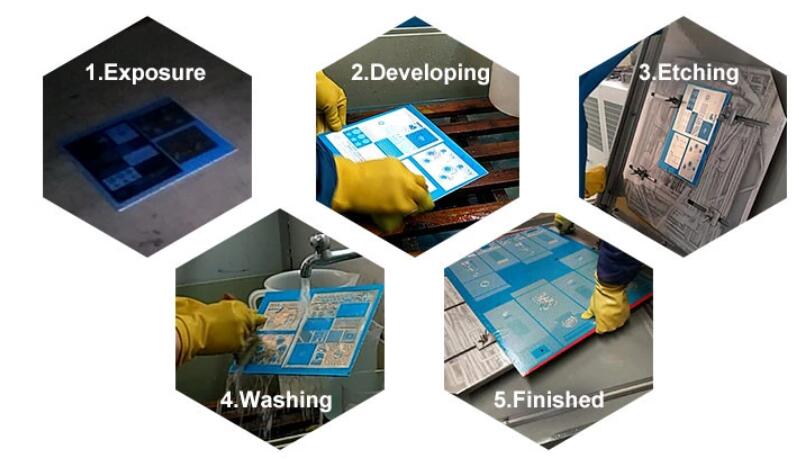

Etching Process
If you have any questions during the operation, you can consult us at any time, and we will provide after-sales service to ensure that you can use the product smoothly after receiving it.

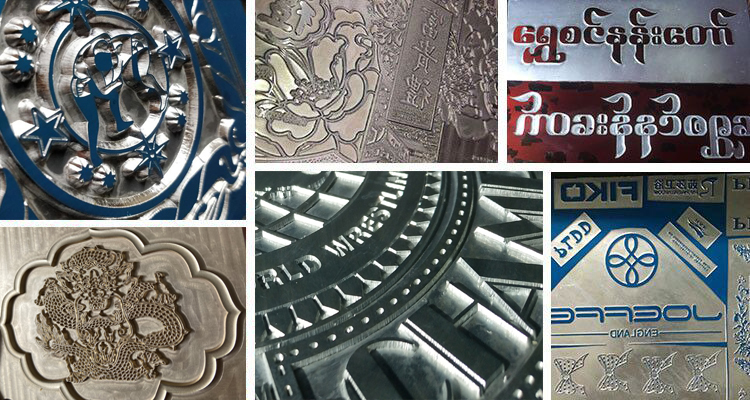

After Etching
Packaging & Shipping
We can propose different packaging solutions according to different situations to ensure that the products reach your hands safely.Of course, we can also provide the packaging required by customers.
Company Profile
Shandong Topower Pte.,Ltd was created in 2017 as a famous manufacture in China who supplied high grade printing products service and solutions, which are focus on service to printing industry.Our main products are zinc plate, magnesium plate, copper plate, etching machine, cutting machine, etc. We have served more than 20 countries, including Peru, Indonesia, Chile, Pakistan, Turkey, etc.Your inquiry is very welcome.
FAQ
Q1:How long is machine guarantee time?
A1:One year guarantee, all inconsumable parts pump/filter/rectifier/kinds motor/chiller and etc, we will guarantee one year, within one year, if any parts broken we will replace it free, natural disaster and human damage is excluded.
Q2:Do you provide installation service?
A2:Definitely, we have professional abroad installation team, standard team is one translator, two mechanical engineer, one electric engineer, your local labor team is required to speed up our whole installation and comissioning procedure.
Q3:How to finish a good etched dies?
A3:1. Exposure: Exposure machine power should be above 2kw; exposure time no less than 300 seconds. Use of 21 step sensitivity guide and 9~11 range exposure is recommended.
2. Developing: Use NaOH solution, suggested solution temperature is 21-29℃.
3. Touch up: Examine the developed plate for flaws and touch up as needed.
4. Descumming: Put finished plate into 3%-5% (Volume) nitric acid solution, use brush to clean the plate surface. Apply Arabic gum evenly on the plate surface after cleaning with water, and then the plate is ready for next step etching.
5. Etching bath preparation: Prepare it for different etching plate accordingly.
6. Etching settings: Set the etching data for different plates.
7. Bath acid replenishment.
8. Top coating removal (optional).
Q4:What is your lead time?
A4:It usually needs about 5-30 days after receiving the Po.
Q5:Why choose us?
A5:We can not only provide you high quality products with competitive price, but also we can supply good techniqgue servicewhich can help you solve problems.
