Product Description
Our J20-J140 chemical etching machine is used to etch stainless steel, copper, magnesium, or zinc plates. Siemens, Schneider, Omron, and other well-known brands are used in all of our electric components. Therefore, our machine has a high level of quality and a long operating life, even more than 15 years.
In order to cool the etching of magnesium plates, we created a unique cooler system. This cooler system cools more quickly and effectively than a standard air conditioner.
Model | Plate Making Size(mm) | Volume(L) | R/S (r/m) | Temp Control (℃) | Time Control(min) | Power(KW) | Voltage(V) | Machine Size(m) |
J20 | 250*350 | 20 | 0-960 | 6-45 | 0-99.99 | 3.2 | 220/380 | 1.2X0.8X1.1 |
J40 | 350*500 | 40 | 0-960 | 6-45 | 0-99.99 | 4 | 220/380 | 1.4X1X1.1 |
J60 | 500*600 | 60 | 0-960 | 6-45 | 0-99.99 | 5.5 | 220/380 | 1.6X1.1X1.1 |
J80 | 500*740 | 80 | 0-960 | 6-45 | 0-99.99 | 6.5 | 220/380 | 1.8X1.2X1.1 |
J100 | 600*800 | 100 | 0-960 | 6-45 | 0-99.99 | 7 | 220/380 | 2.1X1.3X1.2 |
J120 | 600*900 | 120 | 0-960 | 6-45 | 0-99.99 | 8.5 | 380 | 2.2X1.4X1.2 |
J140 | 800*900 | 140 | 0-960 | 6-45 | 0-99.99 | 9.3 | 380 | 2.3X1.5X1.2 |
Machine Details
Working Principle
The corroded metal plates are fastened to the machine's turntable. After the equipment is started, the blades of the rotating shaft lift the corrosive liquid. The metal plate of the turntable is also subjected to vertical impact by the corrosive liquid during the rotating motion. Unexposed parts of the metal plate corrode and melt, forming a patterned metal mold.
Etching Process
We will provide after-sales service if you have promble about product or questions during the operation, which can ensure that you can use the product smoothly after receiving it.
After Etching

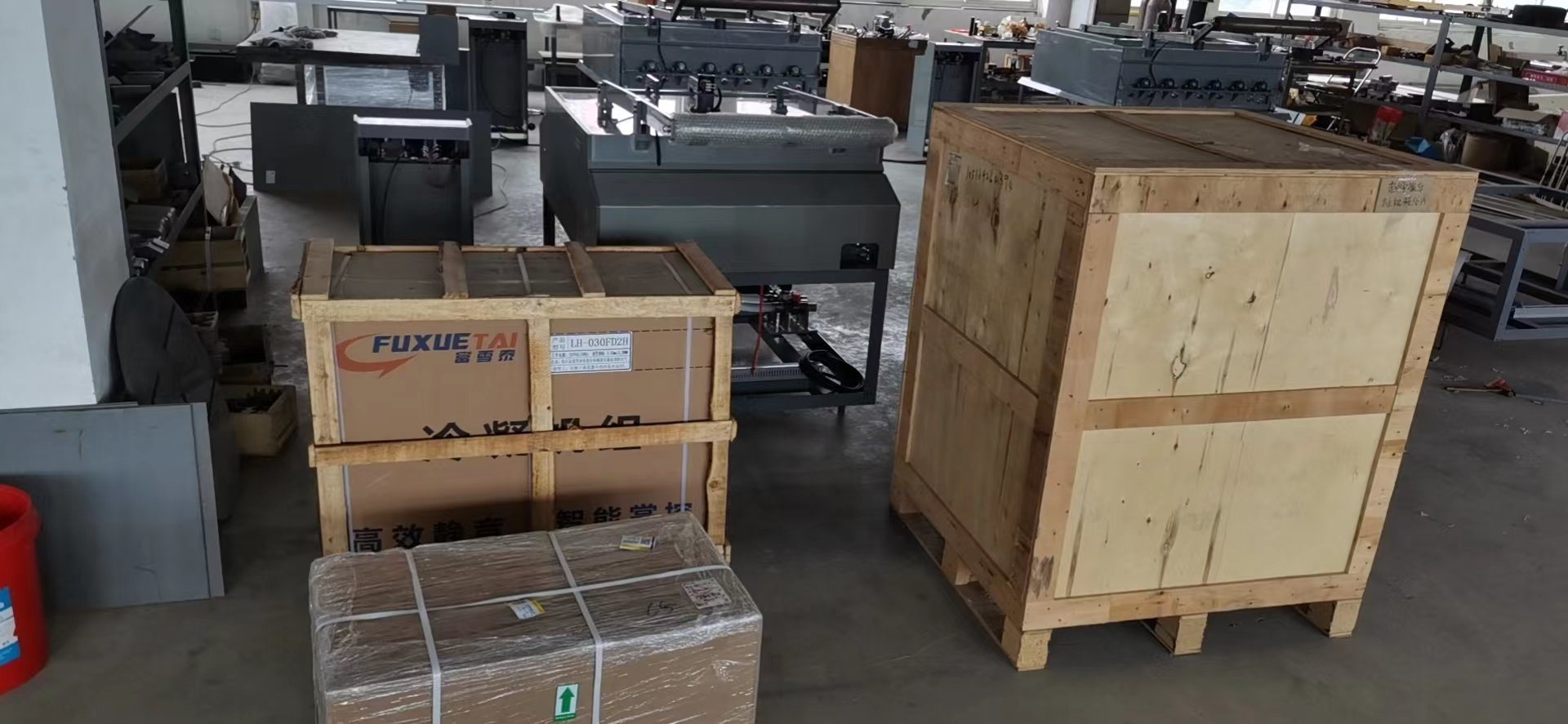

Packaging & Shipping
To make sure that the products get to you safely, we will set up the best packaging options based on the various products and circumstances.
Company Profile
Shandong Topower Pte.,Ltd was created in 2017 as a famous manufacture in China who supplied high grade printing products service and solutions, which are focus on service to printing industry.Our main products are zinc plate, magnesium plate, copper plate, etching machine, cutting machine, etc. We have served more than 20 countries, including Peru, Indonesia, Chile, Pakistan, Turkey, etc.Your inquiry is very welcome.
FAQ
Q1: What's the quality fo this machine?
A1: Our company have many years production experience in China and supplied high grade printing products.
Q3: Can you provide technical support?
A3: We have professional technical staff to provide technical support.
Q4: Why choose us?
A4: We can not only provide you high quality products with competitive price, but also we can supply good techniqgue servicewhich can help you solve problems
